AIR GEYSER INOX

Stainless Steel Bubble Massage Plate

• Air massage plate in AISI 316L stainless steel, 500 mm wide
• Suggested blower: 0.75 kW, airflow 2.8 m³/min

Side or vertical connection (2" female thread)

Equipped with a grounding plug

Seals, clamping flange, and screws included

Suggested blower: 1.5 kW, airflow 4.4 m³/min

Liner – Vertical

• Outer diameter: 300 mm
• Grille diameter: 260 mm
• Depth: 84 mm (105 mm including connection)

Liner – Side

• Outer diameter: 300 mm
• Grille diameter: 260 mm
• Depth: 84 mm (170 mm including connection)

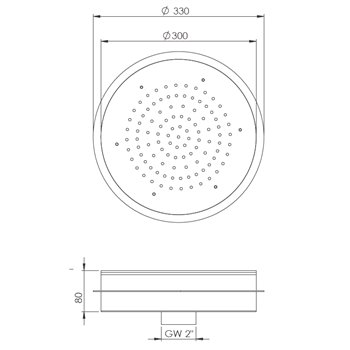

Tile – Vertical

• Outer diameter: 330 mm
• Grille diameter: 300 mm
• Depth: 80 mm (105 mm including connection) (Included)

Tiling – Side

• Outer diameter 330 mm
• Grid diameter 300 mm
• Depth 82 mm (170 mm including joint)
